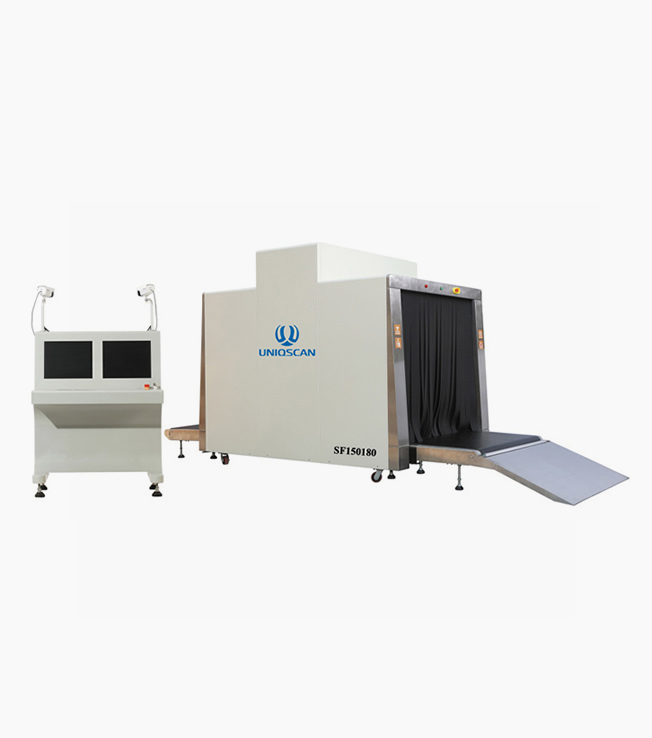

Tunnel Size 1500(W) ×1800(H) mm

Conveyor Speed 0.22m/s

Conveyor Max Load 800kg

Single inspection dosage < 1.6μGy

Leakage radiation <0.8µGy/h

Wire Resolution 36AWG

Steel Penetration 34mm

Film Safety For ISO 1600

---

2* 19”High Resolution LCD Monitor;

Display Resolution: 1280*1024; 24 bit/pixel Color

Super image enhancement: Image detail is more distinct

Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green

Assist to detect drug and explosive powder

Brightening/dimming: Increase/Decrease brightness of image

Multi-energy: High/ low energy:Switch from high energy to low energy

Orientation: Downward;

Tube Current: 0.4-1.0MA（adjustable）;

Anode voltage: 80-160KV;

X-ray divergence angle: 80 °;

Cooling: Sealed oil bath with forced air;

Generator cooling/working periods: Sealed oil bath with forced air/100％.

---

A: 2* 19”High Resolution LCD Monitor;

B: Color quality: 24-Bit real colors based on materials；

C: Contrast Sensitivity: 24 Visible Levels,4096 Gray Level;

D: High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly;

E: Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

F: Edge enhancement—The edge of image is more clear；

G: Image storage: 100,000 pictures in real time (can be customized) Zoom: 64 Times Enlarge, Whole screen continuous observation

H: Zoom in/zoom out—Make the image bigger ,make the image smaller；

I: Display the previous twenty images and process any one of them ; Restore image to initial status;

J: Brighter/darker—Make image more bright /make image darker；

K: Replay—Playback all images on the screen at current， be able to do the next steps.
