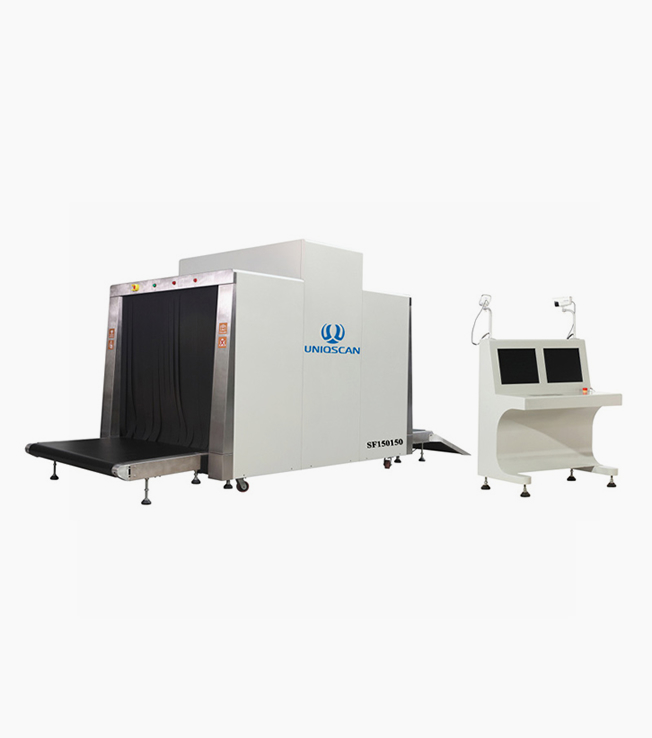

General Specifications:
Tunnel Size : 1500(W)*1500 (H) mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <60dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 800 kg
Wire Resolution: 36AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 34mm
Single inspection dosage: < 1.0μGy
Leakage radiation: <0.1µGy/h
Film Safety: Guarantee ISO1600 Film
X-Ray Generator Specifications:
Tube Current: 0.4~1.25mA
Anode Voltage: 80KV
Detector: L-shaped Array
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Angle: 80°
Computer Specification:
Processor: E5800 Dual-core 3.2G 45nm.2M L2 CAHE,FSB 800MHZ
Memory: 2G DDR3 133MHZ 240PIN
Hard Disk : 500G
Image Display:
19'' High Resolution LCD Monitor
Display Resolution: 1280*1024;24 bit/pixel Color
Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
Image storage: 100,000 pictures in real time (can be customized)
Zoom: 64 Times Enlarge, Whole screen continuous observation
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration: Restore image to initial status
Assist to detect drug and explosive powder
Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenanceTIP and training software
Environment Specifications:
Operating temperature/humidity: 0ºC ~ 45ºC/20% ~ 95% (Non-condensing)
Storage temperature/humidity: -20ºC ~ 60ºC/20% ~ 95% (Non-condensing)
